Orange Coast UHF Repeater Association

    The Orange Coast UHF Repeater Association (OCURA) began as the Bucks-Lehigh UHF Repeater Association (BLURA) founded in 1974 to serve the radio amateur community in Southeastern Pennsylvania's northern Bucks and southern Lehigh counties. BLURA ceased operation in June of 2020 and returned to the air serving Southern California's central Orange County coast in October of 2023.

    The WA3KEY UHF repeater operates dual-mode FM and DMR on the standard frequency pair of 448.720 MHz TX and 443.720 MHz RX. Analog FM is with 114.8 Hz (Code 2B) CTCSS tone activated squelch and DMR is with Color Code 1 and Time Slot 1 on Talk Group 2 (local) from a location high above Newport's Back Bay in the Westcliff neighborhood. All users are welcome.

System Parameters

---

Present Day OCURA Equipment

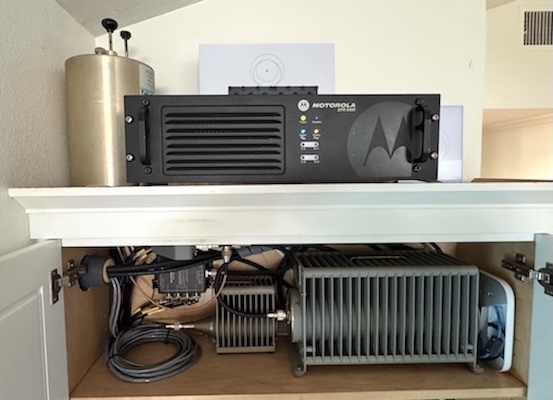

          (Left) - 20 Watt Motorola XPR-8400 Mixed Mode Repeater

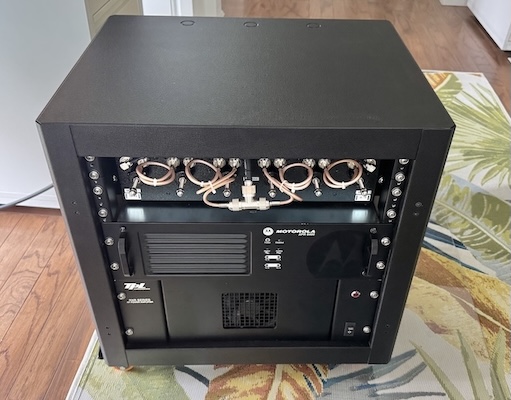

(Right) - 20 Watt Motorola XPR-8400 Mixed Mode Repeater / TPL PA6-1BE 100 Watt Amplifier



---

---

Club Repeaters of Years Gone Bye...
WA3KEY/R - WR3AFX

          20 Watt Motorola Radius R-100 repeater
                        & i50 phone-patch

---

 20 Watt Motorola Flexar desktop repeater
Zetron 48MAX controller

---

                Motorola J74-BBY repeater
  American Microsignal RCP-780 controller
Donated by Lehigh Valley Mobile 1981-1989


---

Converted Motorola J74-BBB base station
Homebrew controller by WA3GAA 1976-1981

---

 Converted Motorola T44 strips
Homebrew controller 1974-1976


---

---

Current System Parameters

Transmitter Callsign   -   WA3KEY
Output Frequency   -   448.720 MHz
Input Frequency   -   443.720 MHz
Transmitter City   -   Newport Beach
Transmitter County   -   Orange
Transmitter State   -   California
Analog Access Mode   -   CTCSS Tone 114.8 Hz (2A)
DMR Access Mode   -   CC 1, TS 1, TG 2 (Local)
Effective Isotropic Radiated Power   -   145 watts
Elevation Above Sea Level   -   130 feet
Height Above Average Terrain   -   30 feet
Transmitter Antenna Gain   -   11.5db
Transmitter Antenna Pattern   -   Omnidirectional
Transmitter Antenna Polarization   -   Vertical
Transmitter Site Latitude   -   33° 37' 49" north
Transmitter Site Longitude   -   -177° 53' 55" west
Transmitter Site Grid Square   DM13bp

---
